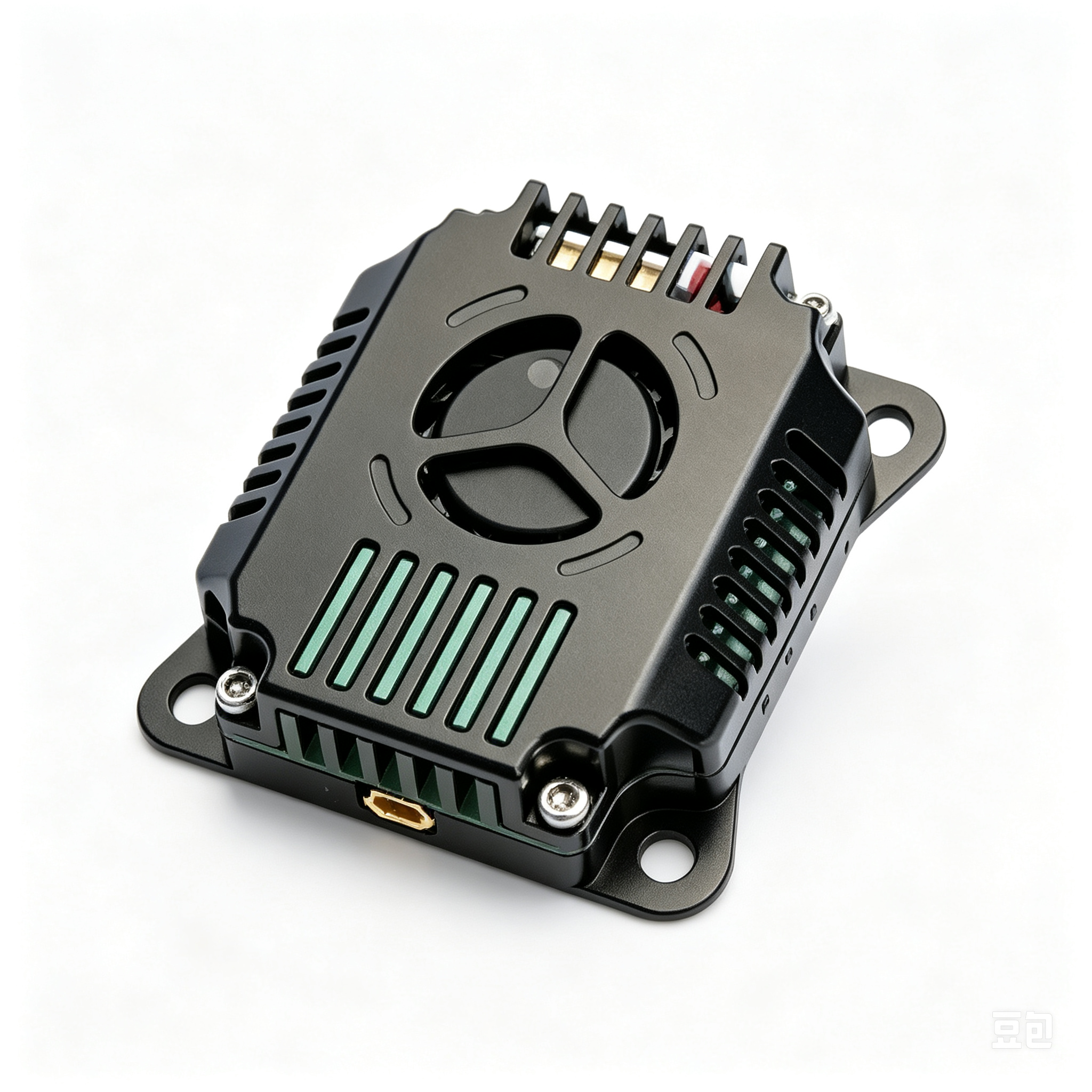

5.8G 3W VTX Video Transmitter With 3dBi Antenna, 4.9G-5.8G FPV Drone Image Transmission Module

Operating Voltage:7-36VOperating Current:1.2A@12V 3000mW

Operating Temperature:-10~65℃

Weight (Excluding Antenna):23gOutline

Dimension:38mm*38mmMount

Spacing:30.5mm, Built-in M3 Thread HolesChannel

Quantity:88CH

Frequency Range:4900~6100MHzAdjustable

Output Power:25mW / 500mW / 1W / 2W / 3WControl

Protocol: IRC Tramp (OSD Parameter Adjustment Supported)

Modulation Mode: FM Frequency Modulation Channel

Bandwidth:2MHzAntenna

Interface: MMCX Video

Format:NTSC/PAL Switchable

5.8G 3W VTX Video Transmitter With 3dBi Antenna

When live video drops mid-flight, the whole drone operation can grind to a halt. A weak video transmission can affect any surveillance mission. Treasure Marine’s VTX Video Transmitter helps solve this problem at the source by delivering stable, real-time video transmission. Compatible with a wide range of drone models, it helps keep your video feed clear and supports more accurate decision-making from takeoff to landing.

Key Features of 5.8G 3W VTX Video Transmitter With 3dBi Antenna

• Broad Frequency Band (5.8 GHz) with 48 Channels: Every VTX drone pilot gets a clear channel even in crowded airspace, and the wide compatibility means this module links seamlessly with most common FPV goggles and remote receivers.
• 3 dBi Antenna for Signal Transmission: We matched the antenna to the transmitter to provide consistent coverage across your operating range. The risk of signal breakup is minimal during critical maneuvers.
• Automatic Overheating Prevention: This video module comes fitted with built-in thermal protection that kicks in before heat can degrade your signal or damage your hardware, so long sessions stay stable and reliable.
• Compact, Lightweight Construction: Consumer and industrial drone builds alike can easily integrate this transmitter without needing any major redesign. The lightweight design keeps your craft agile and your payload budget intact.
• Real-time Video Visual: We designed the transmitter to push a live, low-delay feed so what you see is what is actually in front of your craft, not a buffered ghost of it.

Wholesale Supply without Delay

For teams outfitting multiple drone units or stocking components for their fleets, we have tiered bulk pricing packages with discounts that help you scale without heavy spending. Commercial drone buyers also get the option of custom configurations or paired antenna bundles for specific fleet requirements. We have expertise in Shipping and deliver worldwide. For urgent restocking, we also have shipping options that keep our clients’ business operational, eliminating stockout risks. Request a quote today!
