Handheld Ground Control Terminal, Portable UAV Ground Command Station With Integrated Screen & Joystick

CPU:AMD Ryzen7 8840U (4nm Zen4, 8C16T, 3.3GHz Base /5.1GHz Boost, 24MB Cache)

GPU:AMD Radeon780M RDNA3 2.7GHz

RAM:16G/32G LPDDR5x-7500MHz Dual Channel

Storage: M.2 NVMe PCIe4.0 SSD

Screen:7-inch 120Hz IPS Touch Panel, 1920*1080, 450nits, 100%

sRGBBattery:12600mAh 48.5Wh, 65W GaN

Charger Cooling: Liquid Bearing Fan + Pure Aluminum Heat Sink & Copper Heat Pipes

Ports: TF Card, Dual USB4 Type-C, USB3.0 Type-A, 3.5mm Audio Jack Input

Devices: Hall Trigger, Micro Switch Shoulder Buttons, 18° Analog Joysticks, Dual Linear Vibration Motors. Sensors: 3-Axis Gyroscope + 3-Axis Accelerometer

Wireless:WiFi6, Bluetooth 5.2; Audio Tuned by HARMAN; Custom RGB Badge; Pre-installed Windows 11; Weight ~600 g, Size 263.6*98.2*22.6mm

Handheld Ground Control Terminal for UAV Operations by Treasure Marine

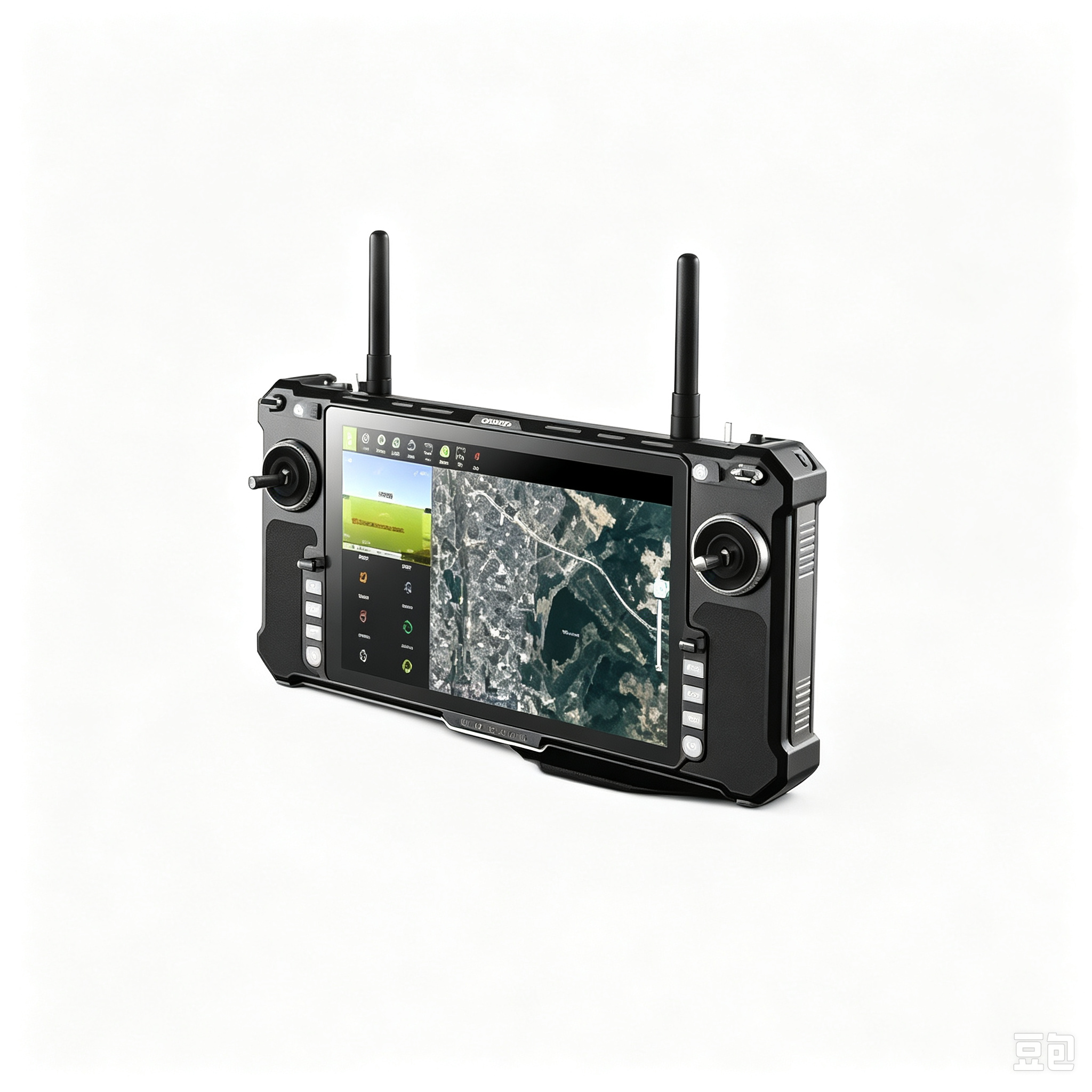

The Handheld Ground Control Terminal from Treasure Marine is a portable UAV ground command station that combines a display, joystick controls, and a processing unit in one compact body. It gives pilots and operators a single device for flight control, live video viewing, and mission monitoring, so there is no need to connect separate controllers, tablets, or monitors in the field.

The integrated screen shows real-time video transmitted from the aircraft, along with flight data such as altitude, speed, battery level, signal strength, and position. The display is built for outdoor use, with high brightness that stays readable under strong sunlight and a touch interface that responds quickly, even when the operator is wearing gloves. Operators can switch between camera views, adjust payload settings, and review telemetry without leaving the main screen.

Control is handled through built-in joysticks and programmable buttons placed for comfortable two-handed use. The joysticks offer smooth, precise movement, which is important for stable flight, accurate camera positioning, and careful maneuvering in tight spaces. Buttons can be assigned to common functions such as takeoff, return to home, photo capture, and video recording, helping operators react quickly during missions. The grip design reduces fatigue during long operations, and the body is balanced so the terminal stays steady in the hands.

Rugged Build and Wholesale Supply from Treasure Marine

The terminal is built for field conditions. Its housing resists dust, light rain, and accidental drops, while the internal battery supports extended working time between charges. Common ports such as USB, HDMI, and charging interfaces allow connection to external displays, storage devices, and accessories. The body is light enough to carry all day, and a neck strap or mounting accessories can be added for convenience.

This device suits many applications, including inspection, surveying, mapping, public safety, agriculture, security patrol, and emergency response. Teams that work in remote areas benefit from having a complete ground station that is ready to use as soon as it is powered on.

Looking for aerial platforms to pair with this terminal? Browse our Camera Drones category for professional imaging solutions, and contact Treasure Marine today for wholesale pricing.
