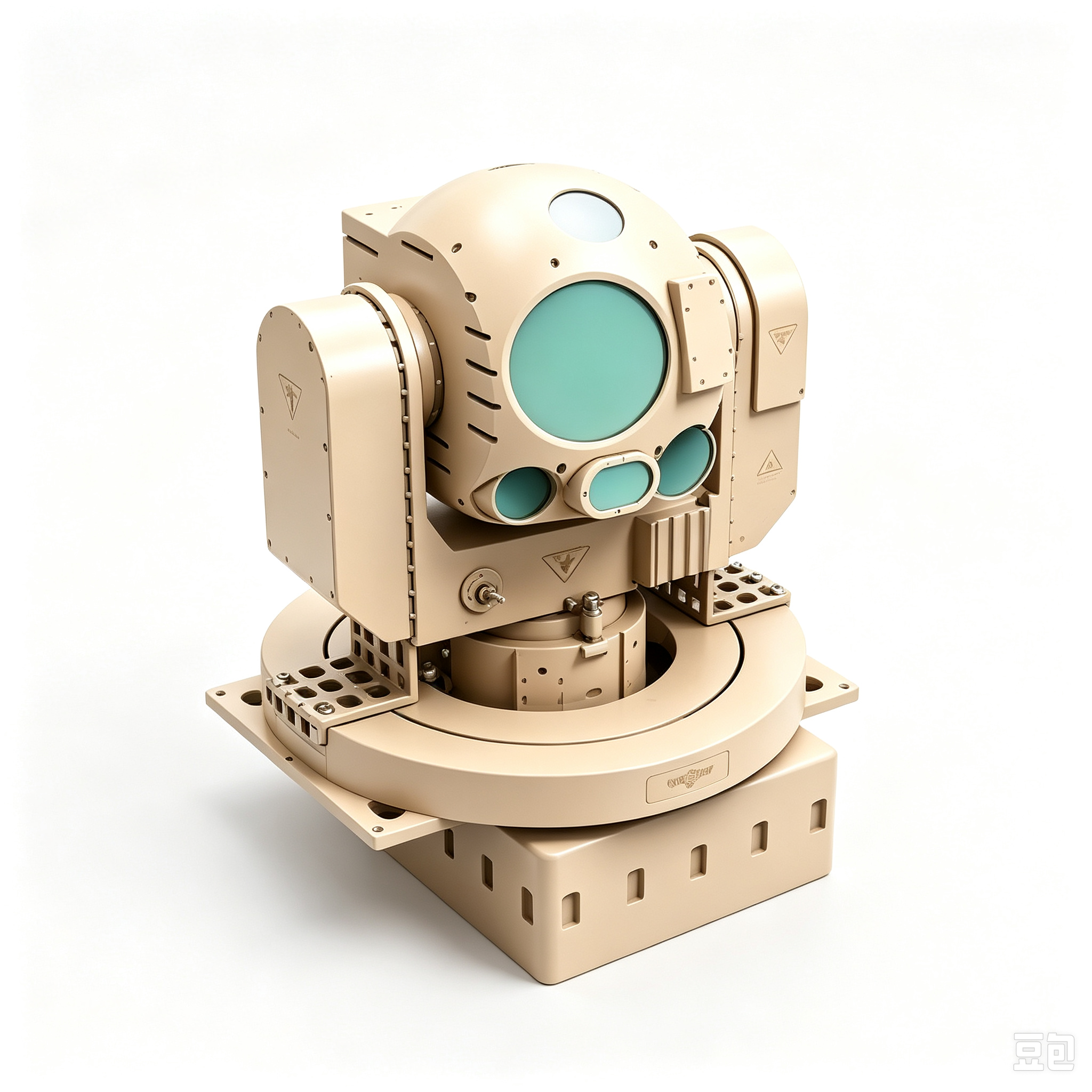

Optical ATP System, Free Space Optical Communication Tracking Gimbal With Laser Ranging Module

Optical Aperture

Diameter:80mmMax Destruction

Range (DJI Phantom 4):100~500mMax Electro-Optical Jamming Distance:＞500mLaser

Wavelength:1070±10nmAzimuth

Rotation Limit:±90°, Elevation:-15°~+70°Max Angular

Velocity:Azimuth 15°/s, Elevation 8°/sMax Angular

Acceleration:Azimuth 8°/s², Elevation 6°/s²

Laser Emitter Assembly, Coarse Tracking Unit, Fine Tracking Unit, Laser Rangefinder, Servo Turret

Optical ATP Gimbal System for Drones in Laser-Based Communication

Explore the optical ATP gimbal system from Treasure Marine. It has the phenomenal laser-based technology you are looking for. This system helps drones to communicate with ground stations in the most sophisticated way. There is no need for RF communication or even fiber optic cable at all. They have a free space laser optical communication, where detection by jammers is almost none. This gimbal adjusts its position and angle as per the desired settings. Our optical ATP system provides sharp tracking, pointing, and lots of supportive functions. Operations where the risk of EMI and physical interference is high need our optical ATP gimbal system. The laser communication will eliminate any fear of interference from anyone.

Key Specifications of the Optical ATP System with Laser Ranging Module

Our technical team can provide all the specifications in detail. There could be adjustments and personalized features for buyers. Here are some of the main specifications you can see.

· Laser Wavelength:1070 nm

· Optical aperture diameter: 80mm

· Electro-optical jamming distance: above 500m

· Azimuth angular acceleration: 8°/s²

· Elevation: 6°/s²

No Electromagnetic, Wind, Movement, and Vibration Interference

Guiding camera drones will be easier with laser technology. Even weather factors like wind and vibration cannot affect the connection between the drone and the ground station. This technology provides precise tracking and target locking features. These advanced functions make our drone communication devices more accurate and successful. They also provide high accuracy in the fine tracking unit and coarse tracking unit. They also contain a laser range finder to measure the distance to a desired drone.
