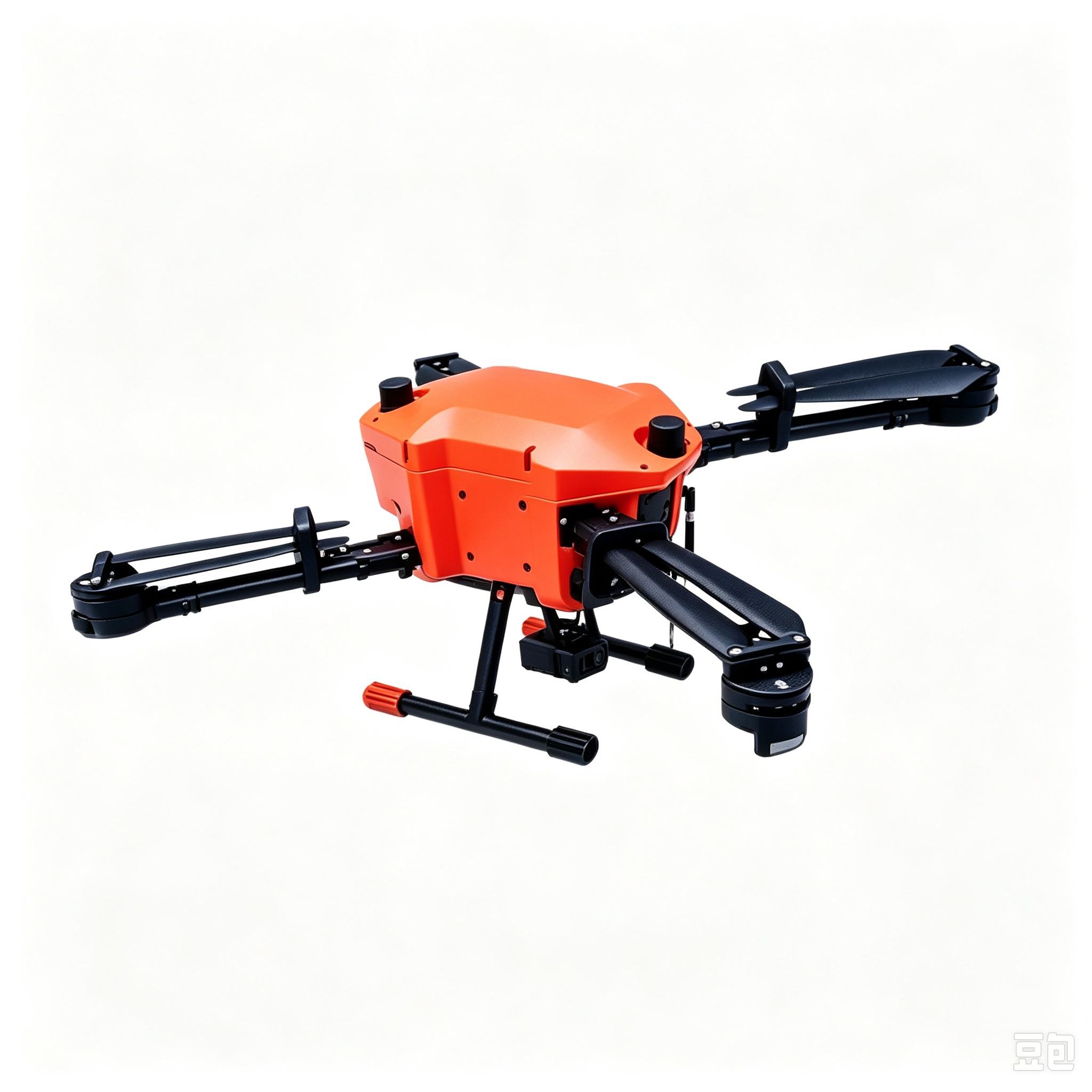

Tianxun M04 Heavy Lift Quadcopter Drone, 20kg MTOW Industrial UAV With 6kg Payload, Long Distance Data Transmission

Wheelbase: 1050mm

Maximum Takeoff Weight: 20kg

Maximum Payload: 6kg

Endurance (Empty Load): 60 min

Remote Control Distance: 2km

Data Transmission Distance: 40km

Maximum Ground Station Control Distance: 40km

Positioning: BDS (B1/B2/B1I/B2I), GPS (L1/L2), GLONASS (L1/L2), Galileo (E1/E5)

Working Temperature: -10°C to 50°C

Unfolded Size: 1265 x 1265 x 425mm

Folded Size: 490 x 350 x 235mm

Packaging Box Size: 700 x 600 x 540mm

Maximum Speed: 54 km/h

Cruise Speed: 7.2 to 54 km/h

Climb Limit: 3500m

Tianxun M04 Heavy Lift Quadcopter Drone by Treasure Marine

The Tianxun M04 Heavy Lift Quadcopter Drone from Treasure Marine is an industrial UAV designed for operators who need to carry real equipment into the air. With a maximum takeoff weight of 20kg and a payload capacity of 6kg, it handles professional cameras, thermal imaging units, gas detectors, LiDAR scanners, and other mission equipment that lighter drones cannot lift.

The airframe uses a four-rotor layout built from high-strength, lightweight materials, which balances structural rigidity with efficient flight performance. Powerful motors and large propellers provide strong thrust, so the aircraft takes off with confidence and holds a steady hover even when carrying its full load. The foldable arms and compact storage profile make transport easier, allowing teams to move the drone between job sites in a standard vehicle without disassembly.

Flight control is handled by an advanced controller with redundant sensors and multiple safety functions. These include return-to-home, low-battery protection, signal-loss response, and obstacle-awareness options, helping operators complete missions with greater confidence. The system supports waypoint planning and automated routes, which is useful for repeat inspection tasks, mapping flights, and long corridor operations. Stable positioning is maintained through high-precision satellite navigation, and the drone remains controllable in moderate wind conditions.

Long-distance data transmission is a core strength of the M04. The communication link delivers clear video and dependable control signals across extended ranges, giving operators live visibility of the mission area. This supports work in power line inspection, pipeline patrol, forestry monitoring, and large site surveying, where distance and signal quality directly affect results.

Mission Flexibility and Wholesale Supply from Treasure Marine

The M04 uses a flexible payload interface that accepts a wide range of mounting options. Gimbals, spray modules, emergency lighting, loudspeakers, and delivery hooks can be installed depending on the task. Quick-release connections reduce preparation time, so crews can switch equipment between missions without delay.

Typical applications include infrastructure inspection, emergency rescue, public safety, agriculture, surveying, logistics, and environmental monitoring. Its endurance and lifting ability allow operators to cover larger areas in fewer flights, which saves time and lowers operating costs.

As a factory-direct product, the Tianxun M04 is available from Treasure Marine for wholesale and OEM orders. Buyers can request custom branding, payload configurations, battery options, and packaging. Each aircraft is tested before shipment to confirm stable flight performance across large orders.
