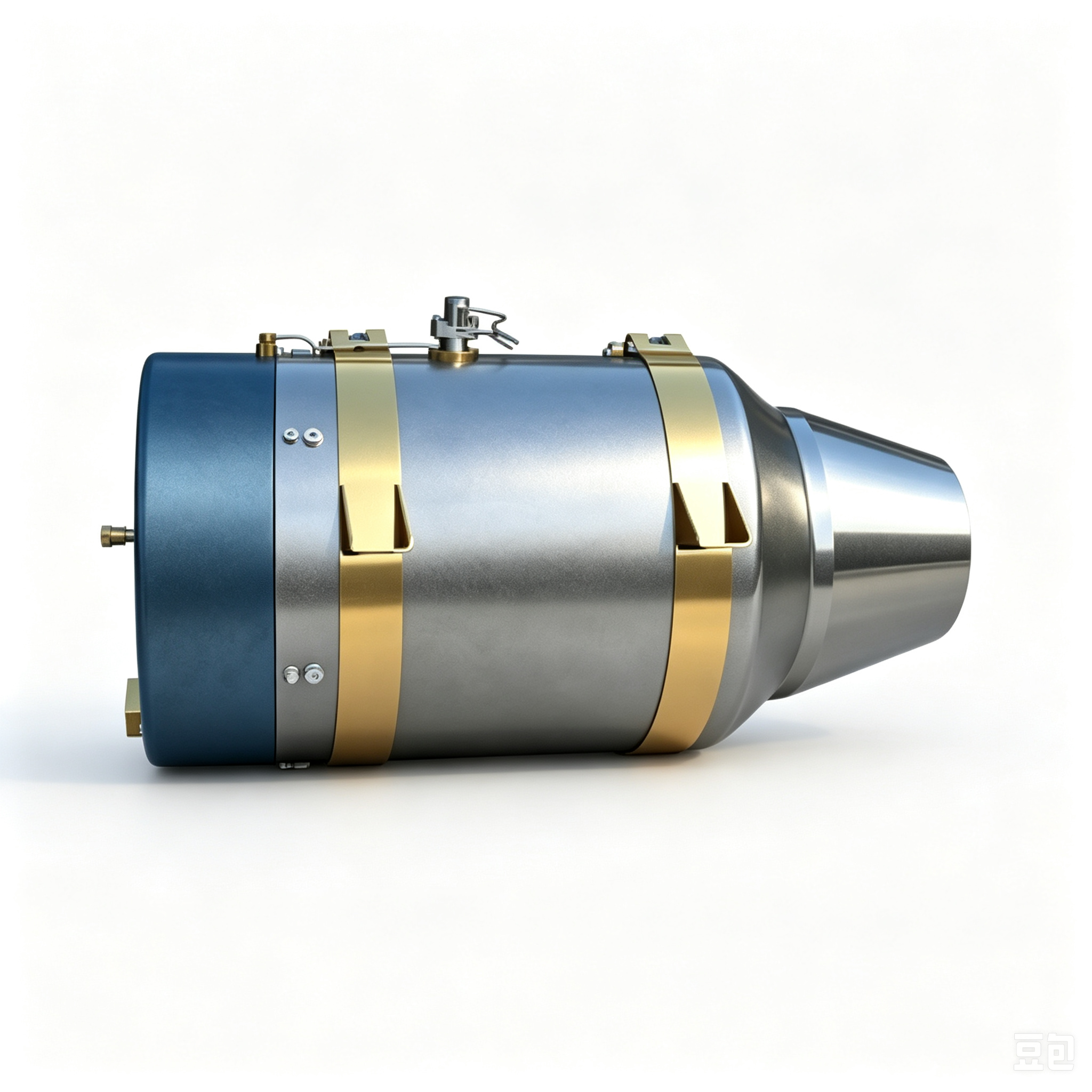

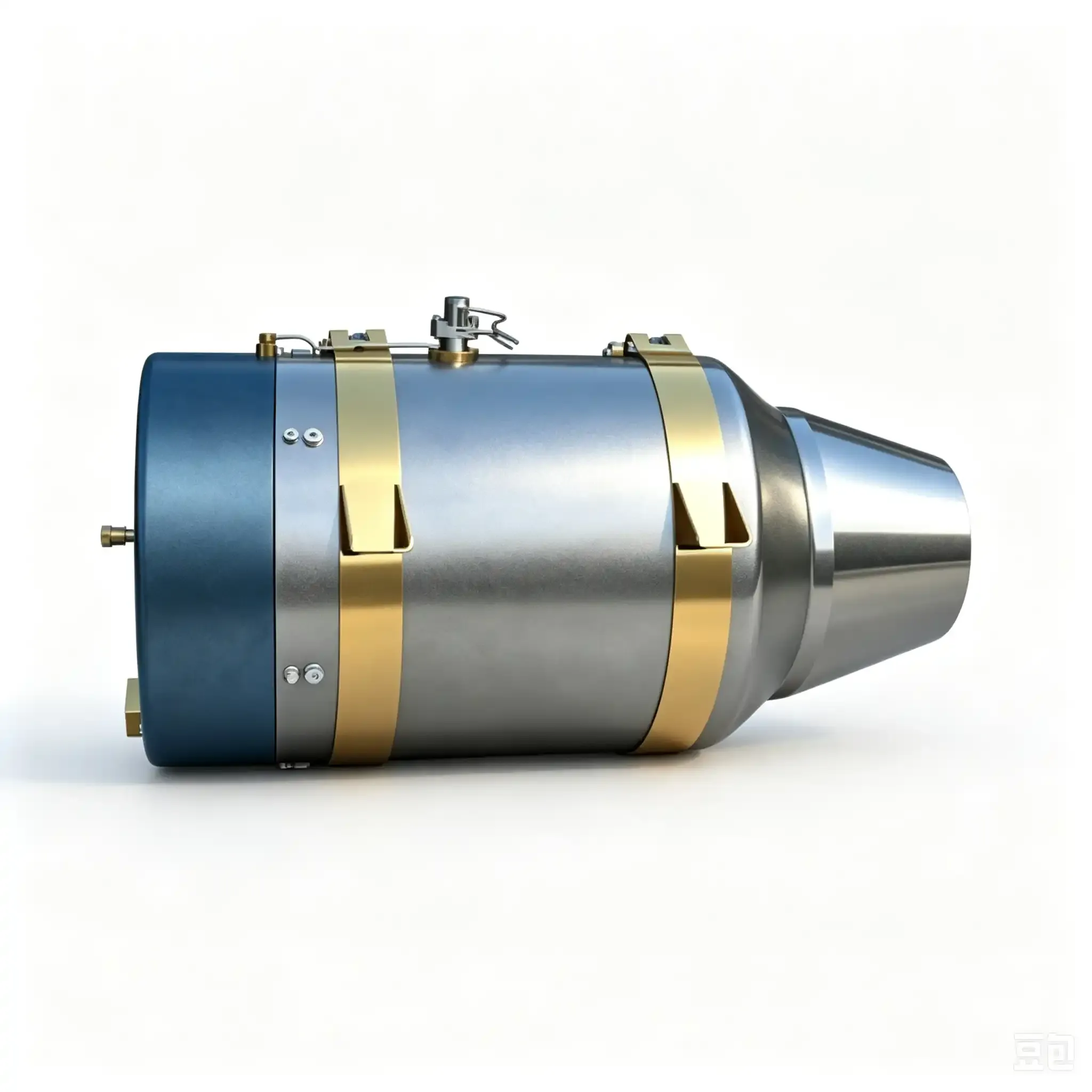

Xingkong 80 Turbojet Engine, 78daN Thrust RC Jet Turbine For Aerial Platform

Standard Static Thrust: 78daN

Outer Diameter: 202mm

Overall Length: 523.8mm

Engine Bare Weight: 10500g

ECU Weight: 500g

Total Weight with All Accessories: 12000g

Operating Temperature Range: -40℃ to 60℃

Input Supply Voltage: 27V to 31V

Startup Mode: One-Click Electronic Auto Start

RPM Operating Window: 30000 to 61500rpm

Rated Exhaust Gas Temperature: 850℃

Fuel Consumption Rate: 1.45kg/(daN·h)

Approved Fuel: RP-3 Aviation Kerosene

Mixing Oil Ratio: 4.9%

Rated Service Life: 20 Flight Hours

Miniature Turbojet Engine for Target Drones, RC Planes, and UAVs

RC planes, target drones, and UAV stations need our miniature turbojet engines. Treasure Marine has efficient engines for all. Each of our turbojet engines has a one-click automatic startup method. That makes the devices start quickly for faster preparation for operations. The performance will be very efficient to make every flight successful. It will be like a miniature version or simulation of a real aircraft. They will demonstrate performance perfectly, and the fuel consumption will also be efficient. These turbojet engines’ strength-to-weight ratio is compatible with UAVs, target drones, etc. This is why they are suitable for flight simulation, research, and recreational work.

Key Specifications of Xingkong 80 Turbojet Engine for RC Jets and UAV Platforms

• Net weight: 10.5 kg

• Diameter: 202 mm

• Length: 523.8 mm

• Thrust: 78 N

• Fuel: Kerosene and mixing oil

• Exhaust temperature: 1000 degrees C

• RPM: 30000 – 61500

• Operating temperature: -40-60 degrees C

• Fuel consumption rate: 1.45 kg/(daN·h)

High Propulsion Power for Accurate Simulation

The propulsion power is similar to that of a standard jet engine. This is why these miniature turbojet engines provide optimal thrust. They help users estimate the flight performance of large UAVs. This is why they can be an ideal choice when it comes to simulation projects. They can be suitable for RC planes and similar flying devices to provide better research results. Their dimensions are suitable for most UAVs and drones. Similarly, their operating temperature range provides experience in different conditions. They can help researchers get better data in both hot and cold regions. Request a Quote Today!!
