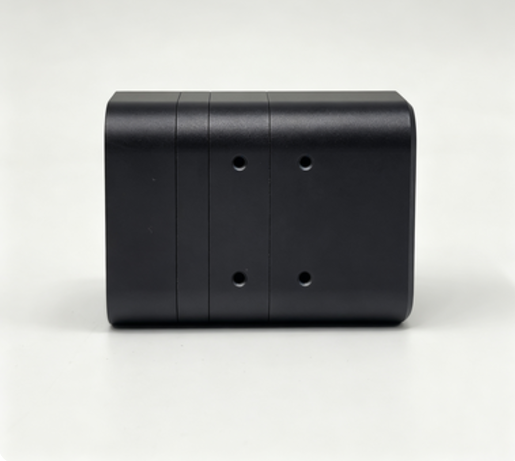

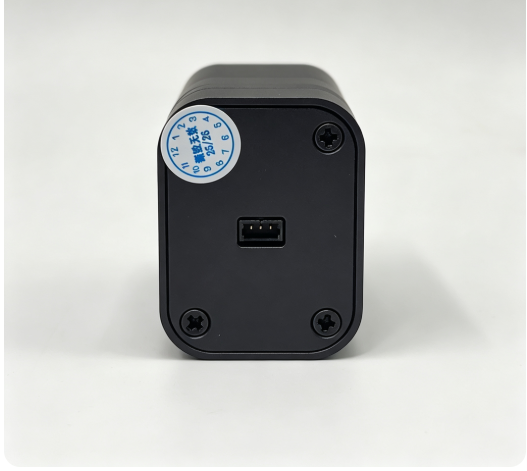

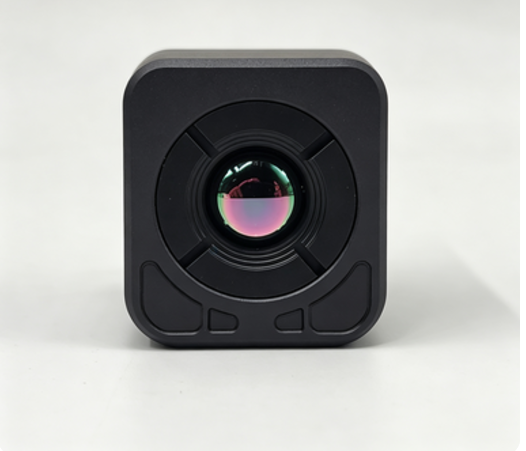

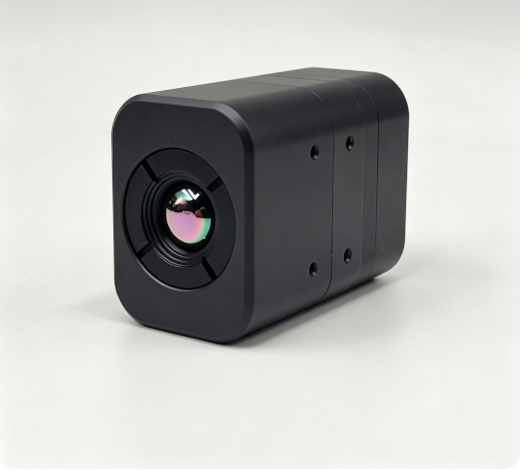

IR-003CA 384×288 Lightweight Thermal Imaging Core Technical Parameters

IR-003CA is a compact uncooled thermal imaging core equipped with a vanadium oxide infrared focal plane array detector. It adopts a 384×288 resolution, a 4 mm F1.0 fixed lens, featuring a wide field of view, a 50 fps high frame rate, and ultra-low latency below 20ms. Weighing only 74g, this module is tiny and lightweight, with power consumption of less than 1.5W. It supports a wide voltage input from 5V to 16V and works stably in a- 20℃ to 60℃ environment with PAL video output. Widely applied in industrial temperature measurement, UAV aerial inspection, vehicle night vision, security monitoring, and outdoor search & rescue.

Lightweight Thermal Imaging Camera for FPV Drones

Treasure Marine has thermal imaging cameras for drone parts. They have infrared sensors that provide great results when it comes to recording in the dark. They are highly compatible with UAV aerial inspection requirements. That means professionals in different fields can get the results they need from these cameras. Their infrared sensors have high sensitivity for precise imaging in the dark. Rescue operations, night adventures, and media applications will get optimum results from them.

· Operating temperature: – 20 degrees C to 60 degrees C

· Resolution: 384 x 288 pixels

· Frame rate: 50 Hz

· Detector type: Vanadium oxide infrared focal plane array

· Weight: 74 g

· Power consumption: As low as 1.5W

· Input voltage range: 5V to 16 V

· Latency: Below 20 milliseconds

· Video output: PAL

· Focal length: 4mm

SWaP Design with Max Compatibility with Civil Drones

Installing these thermal imaging cameras will provide precise results without causing any flight disturbance. Batteries will not run out of power because the power consumption will be low. Their miniature designs are suitable for modern devices like FPV drones. These thermal imaging cameras for drones have SWaP designs. This means their size, weight, and power consumption are very low, for high compatibility with drones’ batteries. They will consume less power for decent output. The compatibility level will be very high with civil drones. Their lightweight designs prevent any burden on flight.

Frequently Asked Questions (FAQ’s)

Do We Supply Thermal Imaging Cameras at Wholesale Rates?

Yes, we are a wholesaler with bulk supply of thermal imaging cameras for drones. Treasure Marine has low prices and compatible quality.

How Much Power Do Our Thermal Imaging Cameras Consume?

They consume as little as 1.5 W of power. This makes them compatible with almost every modern drone parts.
