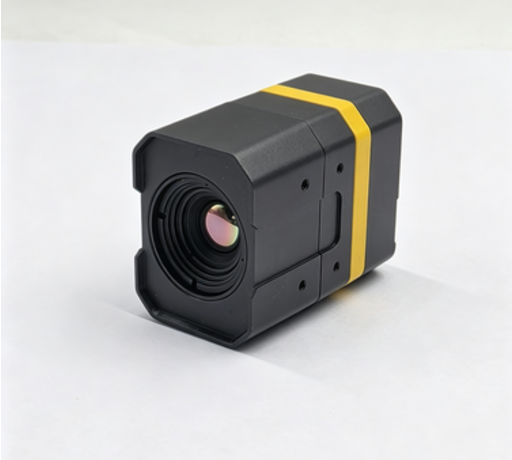

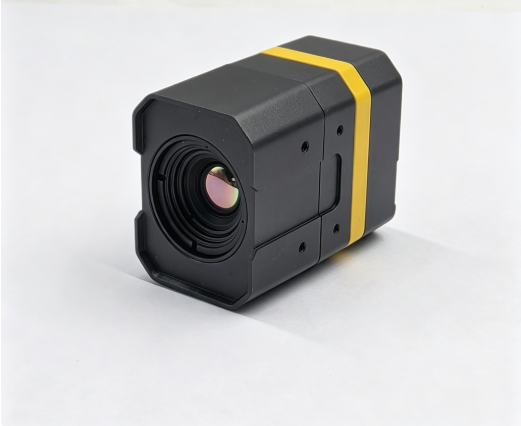

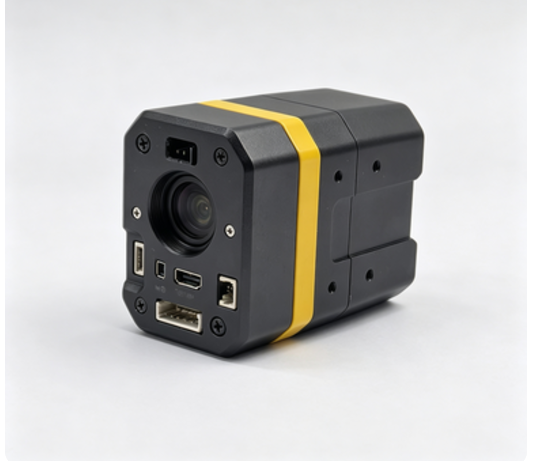

IR009CA 960×768 Thermal Imaging Core, 9.1mm F1.0 Lens, PAL+UVC Dual Output, 50Hz Uncooled Infrared Camera Module with 1

IR009CA 960×768 Thermal Imaging Core, 9.1mm F1.0 Lens, PAL+UVC Dual Output, 50Hz Uncooled Infrared Camera Module With 1

Product Review | Top Rated

Additional Information

Color: Default Color
Size: Default Size
Origin: China
Usage: Default Usage
Type: Default Type
Efficiency: 99.9% Type

Inquire Now

Description:

The IR009CA is a compact high-definition uncooled infrared thermal imaging core tailored for embedded equipment integration. It features a high 960×768 resolution and stable 50Hz frame rate for smooth real-time thermal imaging. Equipped with a 9.1mm F1.0 large-aperture infrared lens, it achieves a 48.3° horizontal × 38.6° vertical field of view for clear long-distance detection.

This module supports synchronous PAL analog video and UVC digital dual output, greatly facilitating connection with monitors, industrial computers and portable devices. It adopts 5V~16V wide voltage power supply with typical power consumption below 2W for energy-saving operation. Users can adjust brightness, contrast, color palette freely within customizable ranges, and realize 1.0~4.0× stepless digital zoom, horizontal/vertical/diagonal image flip via UVC or ADKEY control. The working temperature ranges from -20℃ to 50℃, and its tiny size (35.226.246.4mm) allows easy installation on drones, vehicle night vision systems, industrial inspection equipment and security monitoring devices.
