IR006CA 640×512 Vanadium Oxide Uncooled Infrared Thermal Imaging Core, 9.1mm F1.0 Lens 50fps Low Latency Thermal Camera

Product Review | Top Rated

Additional Information

Color: Default Color
Size: Default Size
Origin: China
Usage: Default Usage
Type: Default Type
Efficiency: 99.9% Type

Inquire Now

Description:

Version 2: Selling Point Highlight Version（B2B 引流、客户介绍)

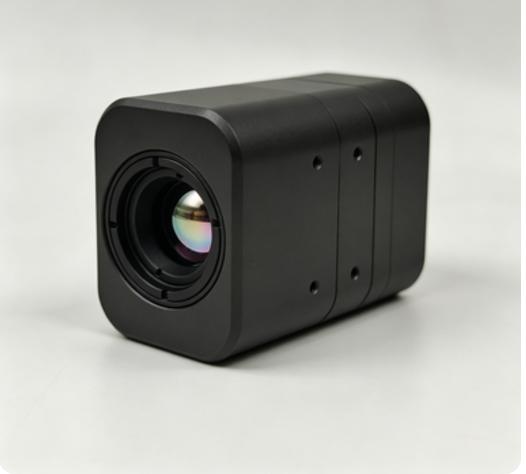

IR006CA is a miniature industrial uncooled thermal imaging core equipped with a vanadium oxide infrared focal plane array detector. It delivers high 640×512 resolution and works within 7000nm–14000nm long infrared wavelength range. Matched with a 9.1 mm F1.0 large-aperture lens, it brings a 48.0° horizontal field of view and excellent long-distance detection capability.

The module runs at a 50 fps frame rate with ultra-low latency of less than 20ms to eliminate motion blur. It only weighs 61g with power consumption below 1.5W, featuring 9V~24V wide voltage input, PAL analog video output, and stable operation from -20℃ to 60℃. Widely used in drone inspection, vehicle night vision, industrial temperature detection, security monitoring, and fire early warning.

Low-Latency Vanadium Oxide Thermal Camera for Drones

Thermal imaging in drones will be sharper with this camera. Treasure Marine enables thermal tracking in a better way. Our vanadium oxide thermal camera does thermal tracking without the need for cryogenic systems. Expect clear image quality from this miniature camera we have for you. Since we are a bulk manufacturer, we have this thermal imaging camera in bulk for drones. Its infrared sensors will detect heat for precise surveillance and tracking in the dark. Low latency makes them a compatible choice for many users.

Key Features of IR006CA 640×512 Infrared Thermal Imaging Core:

· Resolution: 640 x 512 pixels

· Power consumption: 0.5 W

· Input voltage range: 5.5 V

· Latency: 50 fps

· Video output: PAL

· Operating temperature: – 10 degrees C to 50 degrees C

· Frame rate: 50 Hz

· Pixel size: 12μm

· Detector type: Vanadium oxide infrared focal plane array

· Weight: 60 g

· Focal length: 9.1 mm F1.0

High Sensitivity to Thermal Radiations

Companies can source these infrared sensor cameras for FPV drones. They offer high sensitivity to thermal radiation in different locations. They work well in conditions like night, fog, and light smoke. Their power consumption is very low, along with a compact size and weight. As a result, installing them enhances the capabilities of modern UAVs. Recording in the dark will be possible with these cameras. They are fully compatible with rescue operations, surveillance, and vlogging. Buyers from the retail sector and corporations can contact us for more details. We may help buyers with specific configurations depending on their applications.
